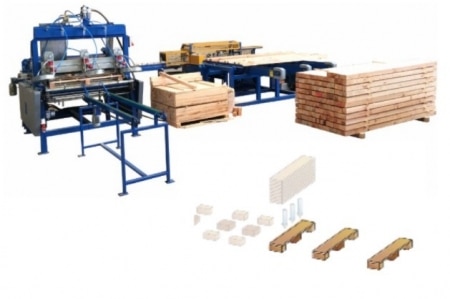

This machine is designed to nail legs with 3 or 4 blocks. It consists of a fixed support with 6 or 8 face-up coil nail guns, chassis made of structural tube and block feeders charged manually. Blocks are dragged by tubes held by two side chains which are is driven by a 2 CV geared motor. Planks are charged by an employee in a buffer storage and placed onto blocks by a pneumatic system.
The MPA is an auxiliary machine to nail 4 ways pallets. It is completely automated and it is operated by only one employee who merely charges wood. The machine achieves 8 – 12 legs per minute.

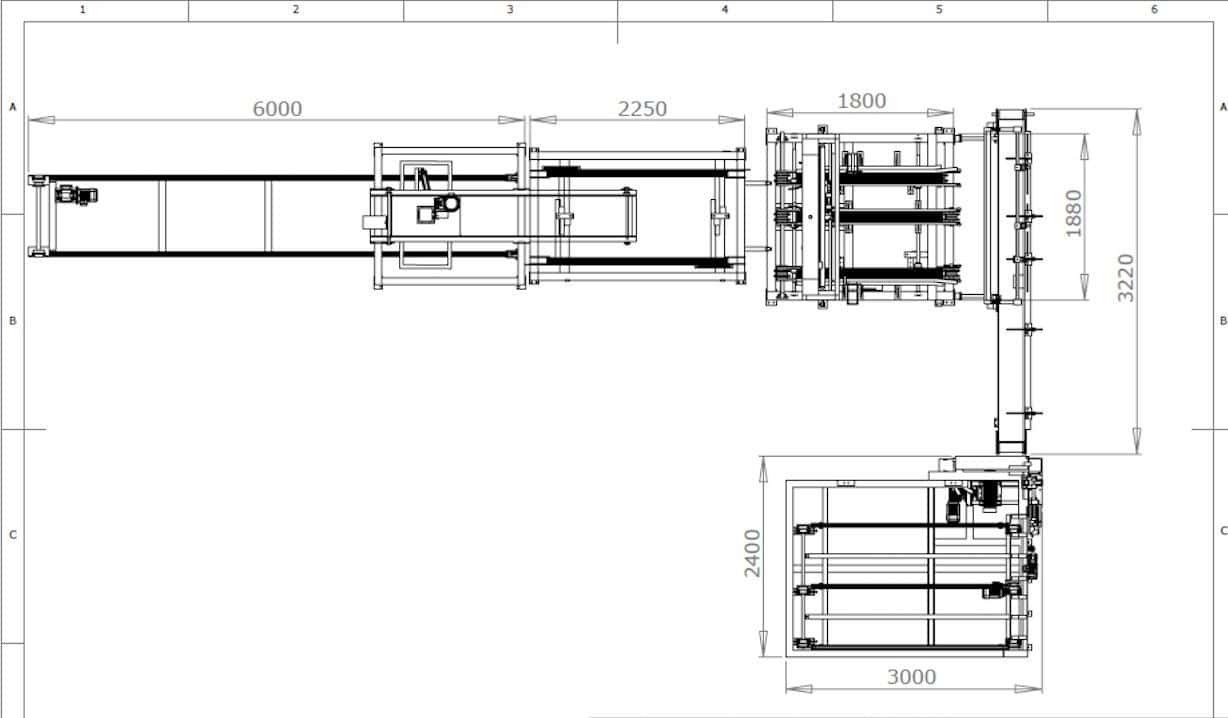

It is possible a greater automation by adding a block cutter with automatic charger, legs stacker and a transfer module for legs. In this way we will get the highest level of productivity with the minimum personnel.
- Auto bar feeder with chains
- Auto crosscut to cut blocks
- Auto block feeder
- Nailing machine to manufacture legs
- Group of chains for exit of legs
- Auto stacker
- Production: 600-650 legs/hour
