Description

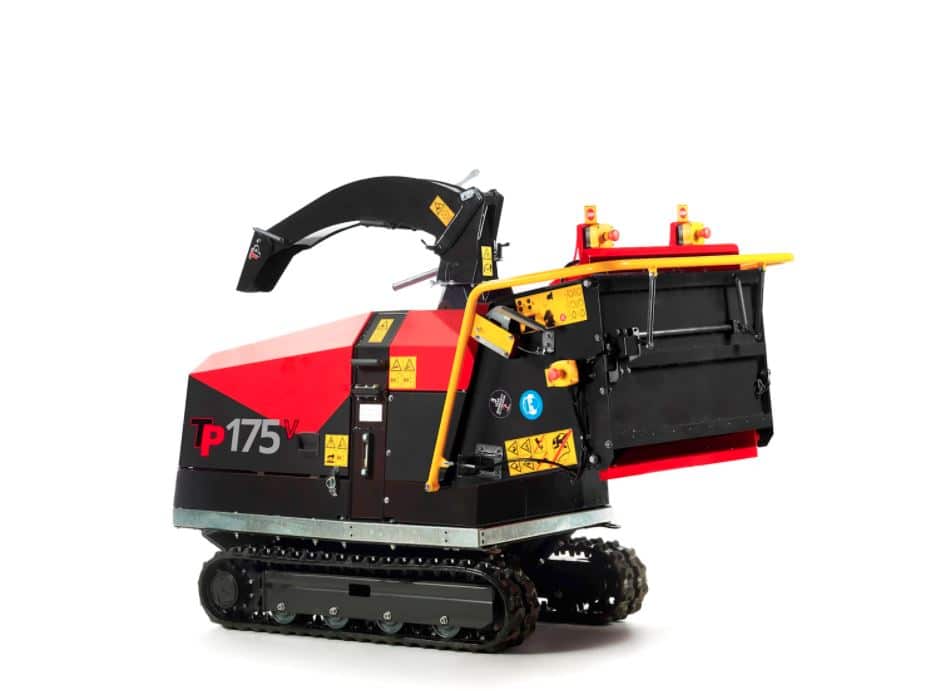

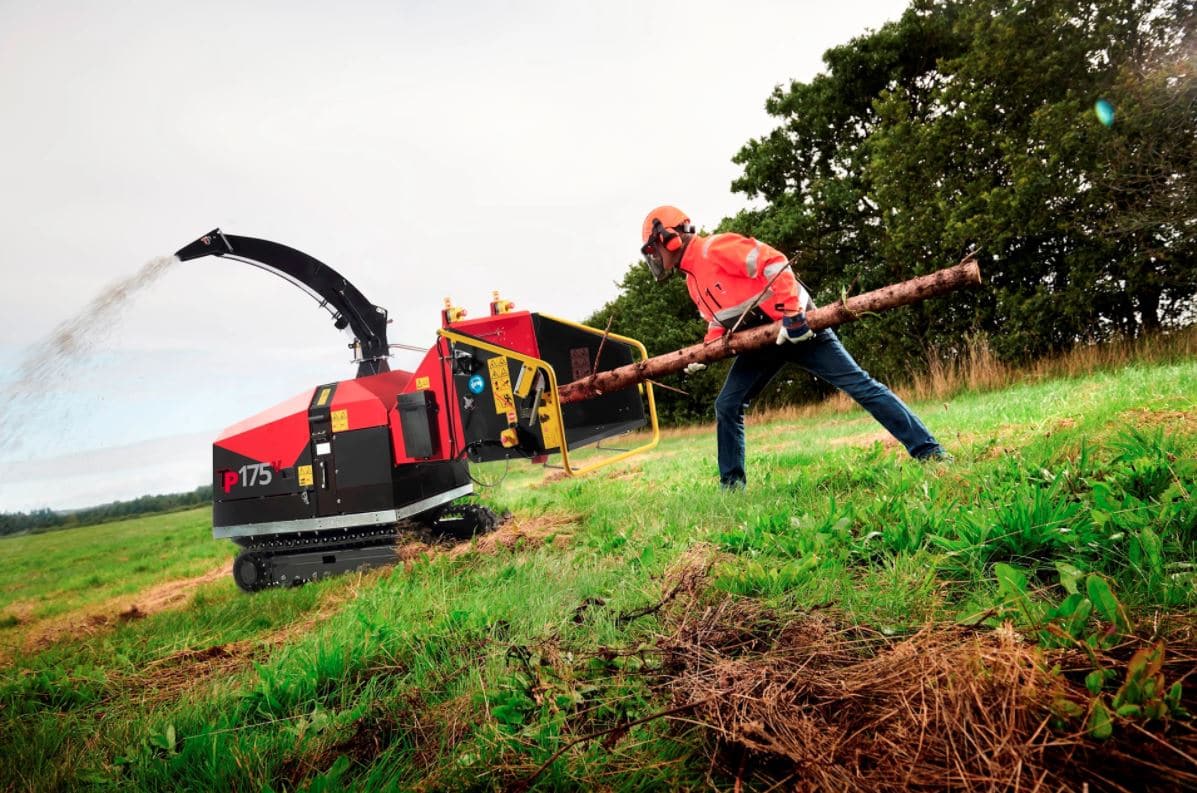

TP 175 TRACK is designed for jobs that require a wood chipper that is versatile and easy to manoeuvre, which can work in all types of areas – and in areas, other vehicles find difficult accessing. The track is operated by a user-friendly remote control, from which both speed and track width can be chosen and has the automatic clutch system TP STARTER and the stress control system TP PILOT to prevent engine overload
Features:

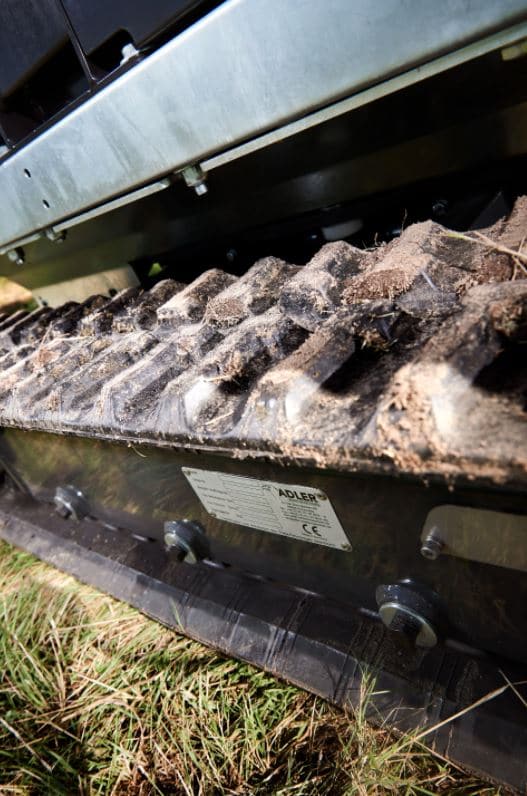

- The low caterpillar treads are adjustable for a narrow or wide belt position and have two speeds
- Integrated hydraulic system with to horizontally set feed rollers
- Hydraulic control of the feed roller speed enables you to adjust the wood chip size from 4 to 10 mm
- With stress control system and hour counter TP PILOT and the automatic clutch system TP STARTER
- Safety bar for start/stop/reverse of feed rollers
- Turnable ejector spout
Technical Data:
| Max. wood diameter | 175 mm |
| Infeed opening | H x W = 175 x 191 mm |
| Chipping principle | Disc chipper with TP TWIN DISC™ and TP OPTICUT™ |
| Infeed angle | Parallel to driving direction |
| Feed rollers | 2 horizontal |
| Rotor disc diameter | 599 mm |
| Rotor disc weight | 69 kg |
| Number of blades | 2 |
| Counter steel | 1 horizontal, 1 vertical |
| Chip size | 4 – 12 mm |

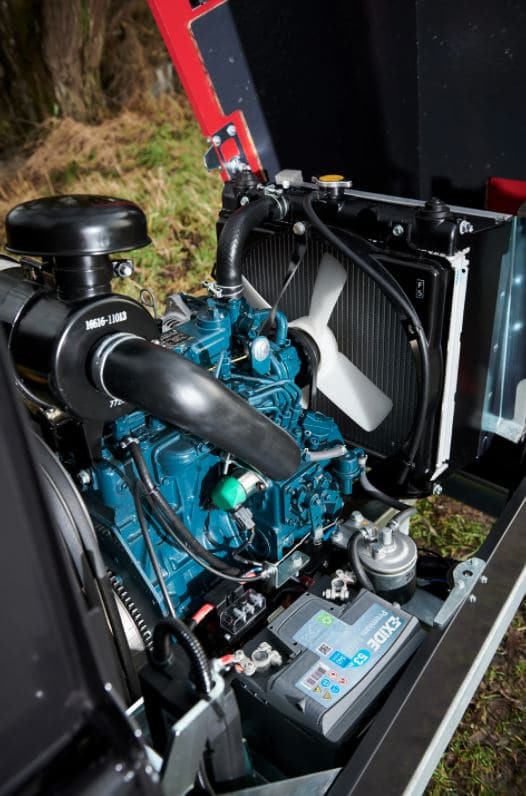

| Engine | Kubota D1305-E4B Stage V |
| Engine power | 25 hp / 18,5 kW |
| Capacity | Up to 10 m³/hour |
| Weight | 1090 kg |
| Height (operation) | Fixed ejector spout: 2049 mm TP VARIO SPOUT: 1900 mm (2115 mm – 2590 mm) |
