Description
Profitable cross-cutting is guaranteed with the high-precision Dimter Line OptiCut 200 series. To achieve maximum value creation, the OptiCut 200 series optimizing cross-cut saws not only cut out defects, they also calculate the best possible length combination from the available fixed lengths and cutting list. This guarantees maximum recovery and/or optimal value from your material. Finger-jointing lengths are fully integrated into the optimization and up to 8 different wood qualities can be classified. The wood simply has to be marked and placed into the machine infeed. The horizontal alignment makes this work stage much easier. Of course, you can also integrate fully-automatic defect detection (scanner) into the cutting line.

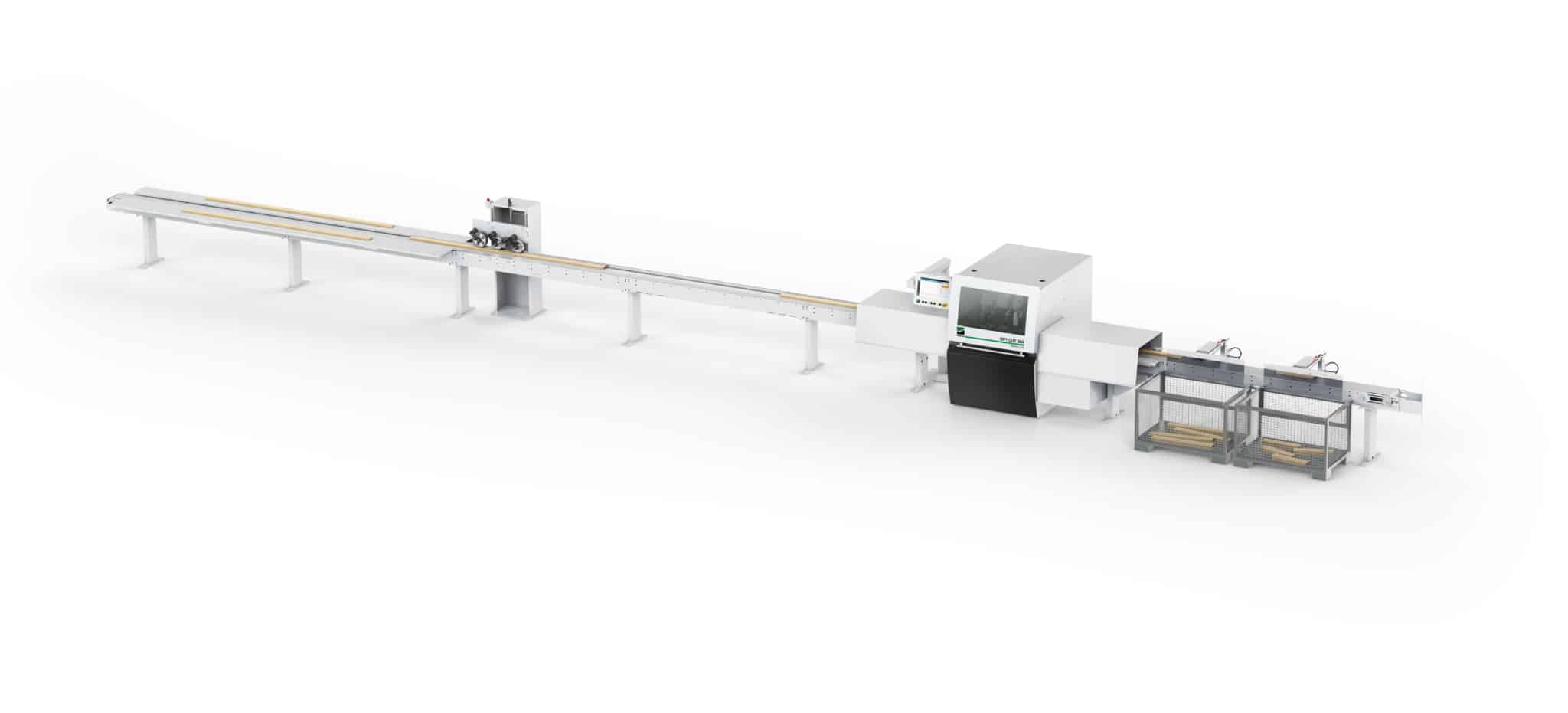

Optimizing cross-cut saw OptiCut 200
Perfect entry into high-performance cross-cutting

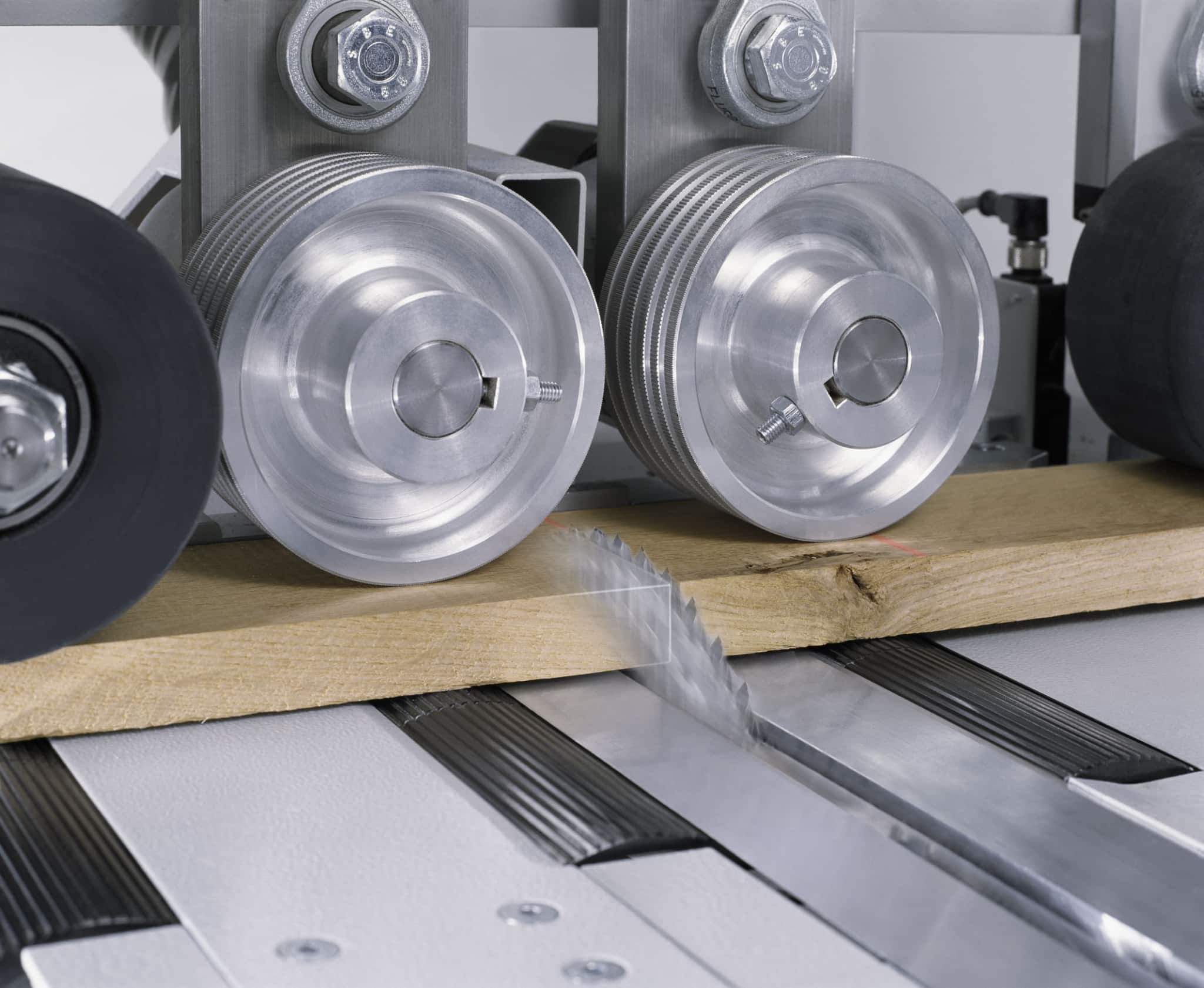

- 5 driven feed rollers from below, pressure rollers from above
- Pneumatic saw stroke
- Cutting of cross-sections up to 260 x 12 mm or 160 x 80 mm is possible

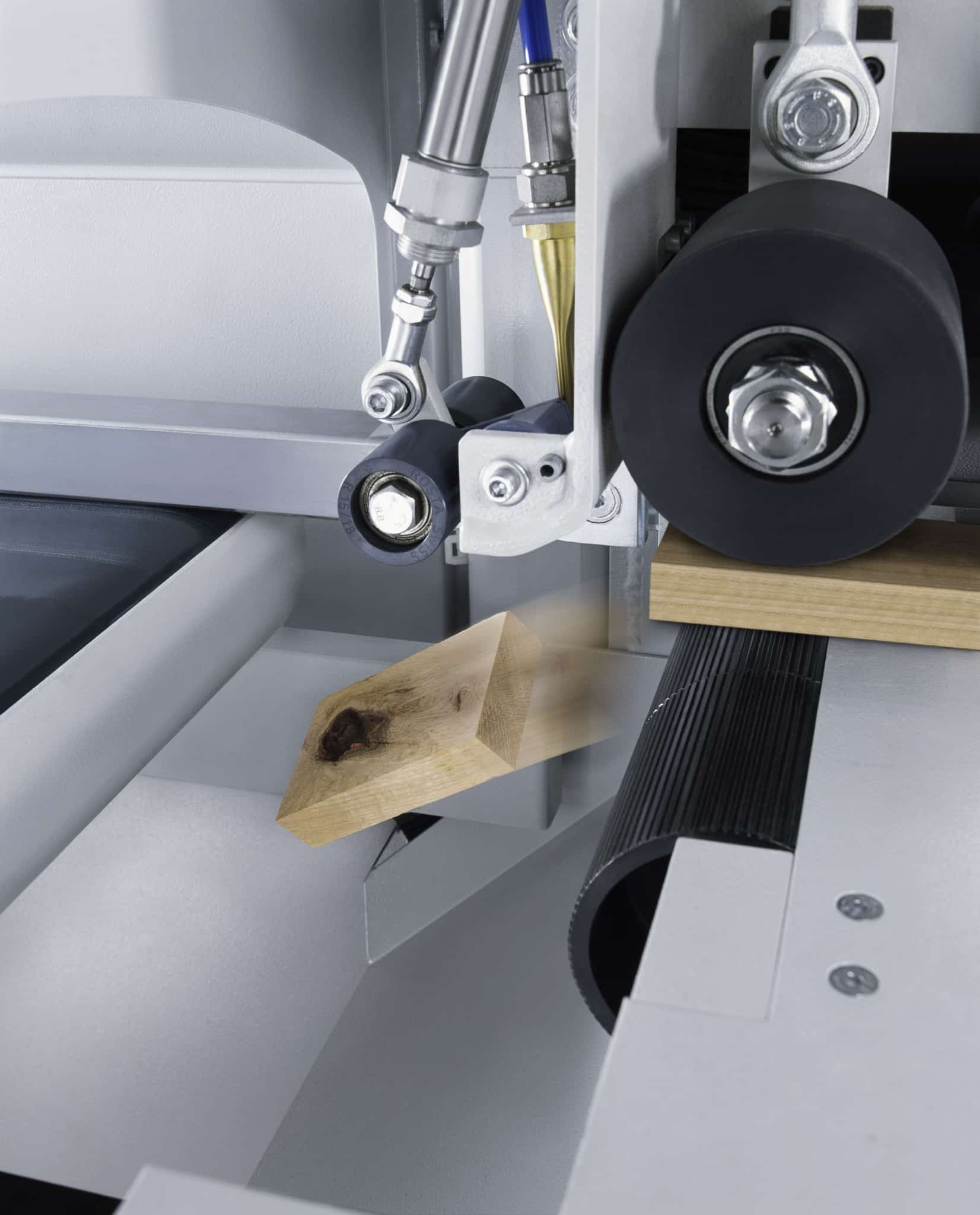

- Waste disposal via blow-out device
- Saw blade diameter 500 mm
Optimizing cross-cut saw OptiCut 260
Efficient performance through intelligent solutions
- VarioSpeed infeed belt as standard
- 5 driven feed rollers from below, pressure rollers from above
- Pneumatic saw stroke
- Cutting of cross-sections up to 260 x 12 mm or 160 x 80 mm is possible
- Saw blade diameter 500 mm
Optimizing cross-cut saw OptiCut 200 Exact
The first choice for maximum accuracy
- VarioSpeed infeed belt as standard
- 5 driven feed rollers from below, pressure rollers from above
- Servo-controlled saw stroke as standard
- Cutting of cross-sections up to 260 x 12 mm or 160 x 80 mm is possible
- Saw blade diameter 500 mm

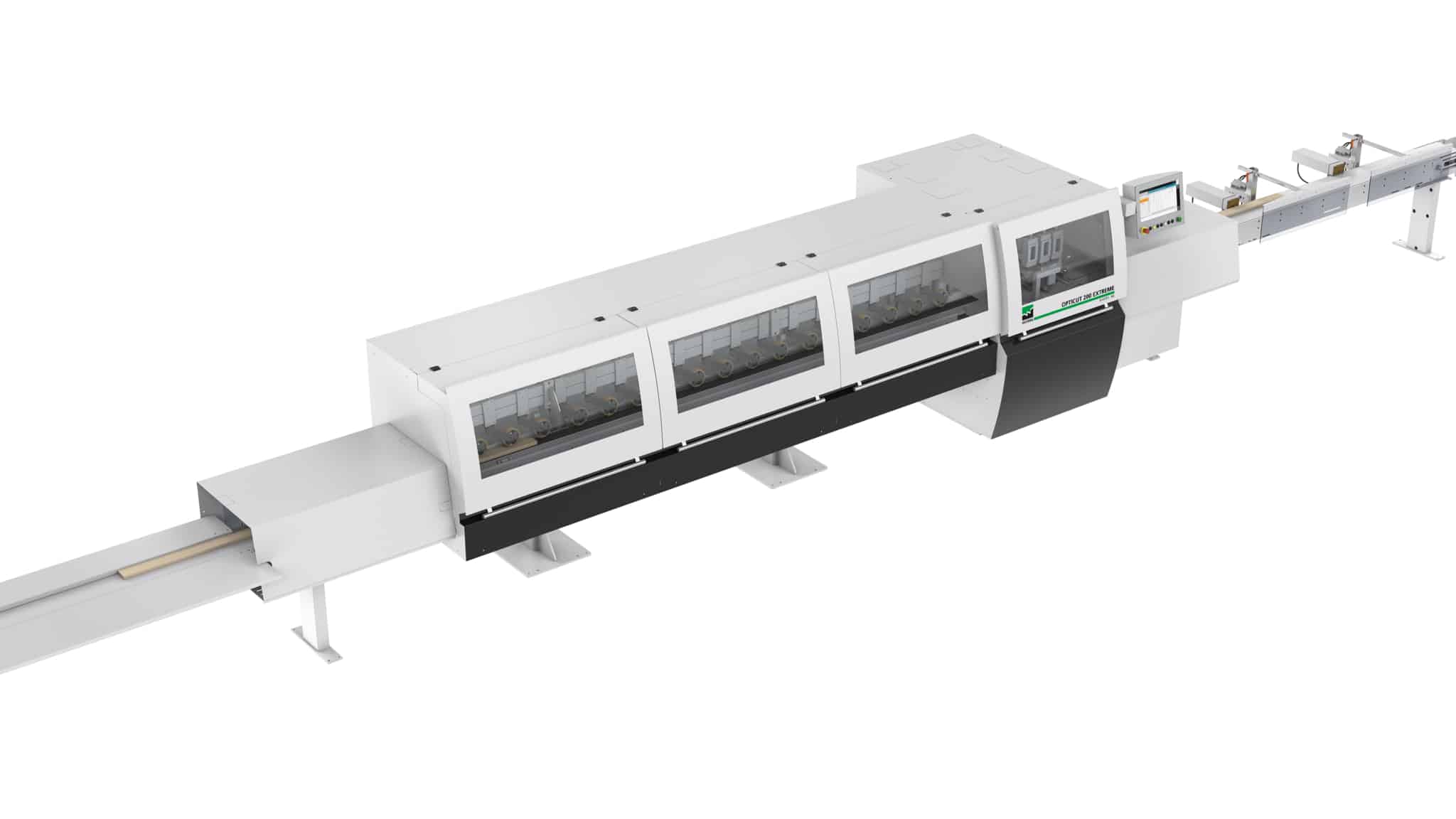

Optimizing cross-cut saw OptiCut 200 Extreme
The powerhouse for maximum performance
- Powerful feed via chain infeed system
- Unique length measuring system
- Pneumatic saw stroke
- Cutting of cross-sections up to 260 x 12 mm or 160 x 80 mm is possible
- Saw blade diameter 520 mm
