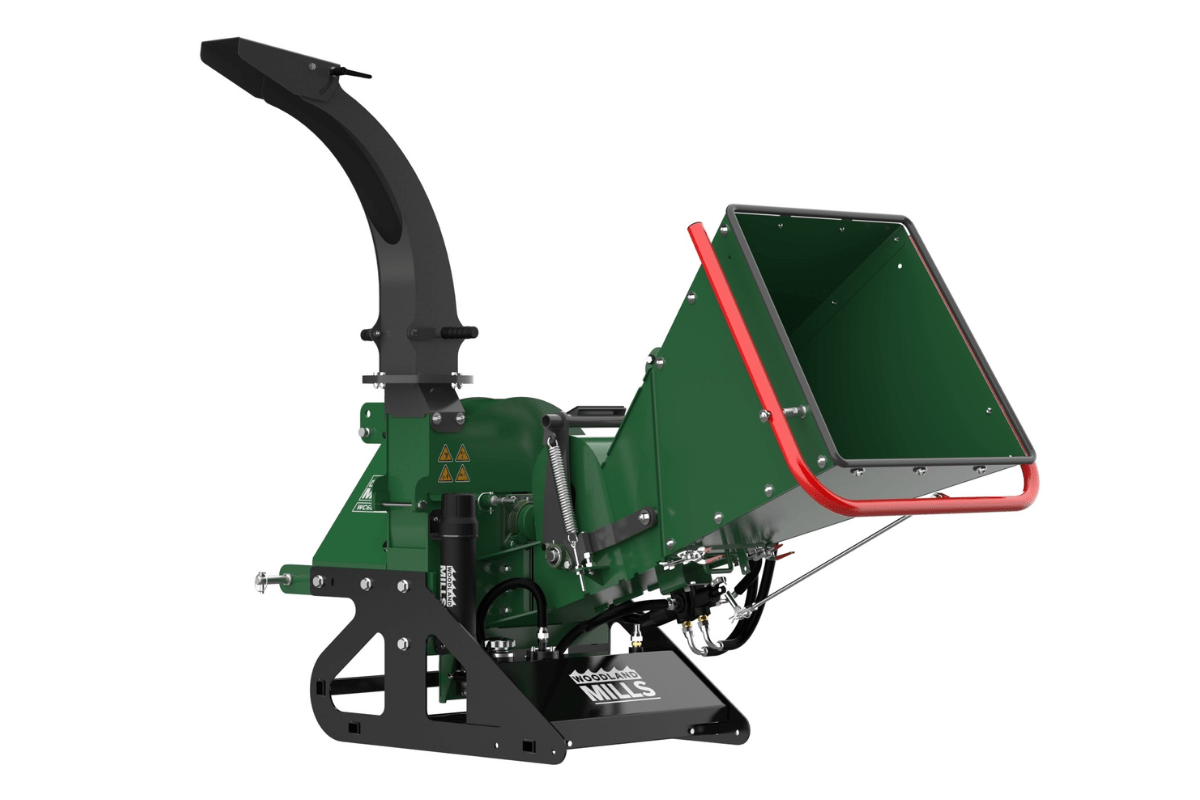

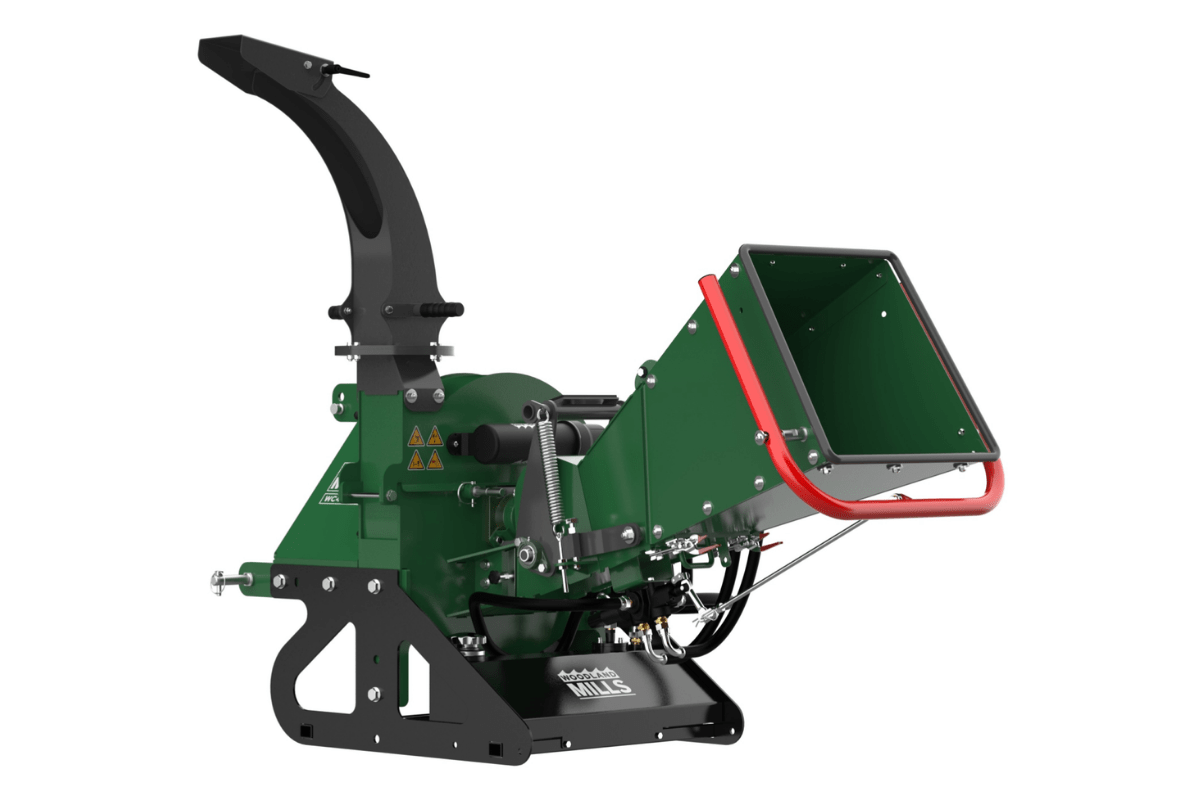

| In-feed opening | 10x15cm |
| In-feed drive | Forward/Neutral/Reverse With Variable Speed [23 m/min] |
| In-feed roller size | 15cm chisel tooth |
| In-feed roller pressure | Adjustable via spring tension |
| PTO HP range | 10-30HP |
| Flywheel Diameter/Thickness | 46 cm x 2 cm thick |
| Flywheel speed | 540RPM |
| Flywheel housing thickness | 8mm thick |
| Flywheel housing design | Easy to open clamshell (for easy clean out and blade changes) |
| Number of blades | 4 reversible blades |
| Quick hitch compatible | Cat 1 quick hitch |

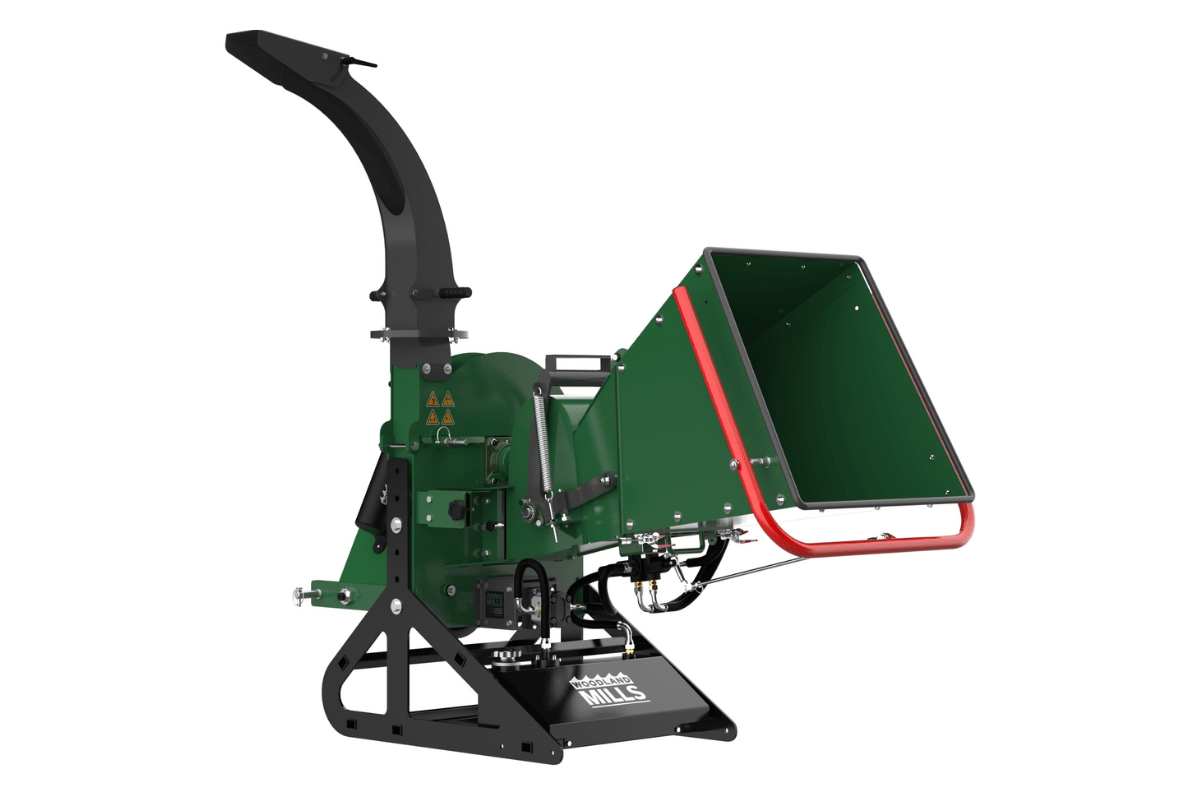

| In-feed opening | 15x20cm |
| In-feed drive | Forward/Neutral/Reverse With Variable Speed [23 m/min] |
| In-feed roller size | 20cm chisel tooth |
| In-feed roller pressure | Adjustable via spring tension |
| PTO HP range | 20-50HP |
| Flywheel Diameter/Thickness | 61 cm x 2 cm thick |
| Flywheel speed | 540RPM |
| Flywheel housing thickness | 8mm thick |
| Flywheel housing design | Easy to open clamshell (for easy clean out and blade changes) |
| Number of blades | 4 reversible blades |
| Quick hitch compatible | Cat 1 quick hitch |
| In-feed opening | 20x20cm |
| In-feed drive | Forward/Neutral/Reverse With Variable Speed [23 m/min] |
| In-feed roller size | 20cm chisel tooth |
| In-feed roller pressure | Adjustable via spring tension |
| PTO HP range | 35-100+ HP |
| Flywheel Diameter/Thickness | 61 cm x 2.5 cm thick |
| Flywheel speed | 1100RPM |
| Flywheel housing thickness | 8mm thick |
| Flywheel housing design | Easy to open clamshell (for easy clean out and blade changes) |
| Number of blades | 4 reversible blades |
| Quick hitch compatible | Cat 1 quick hitch |

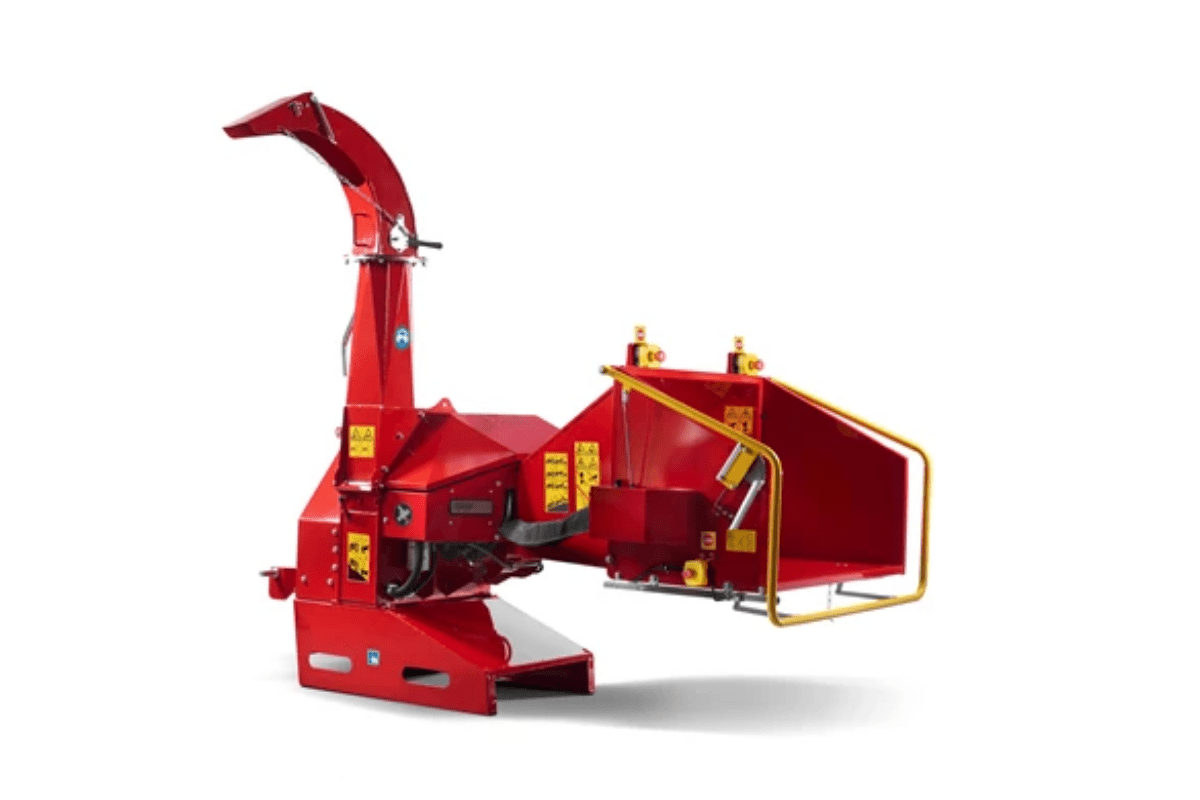

| Max. wood diameter | 200 mm |
| Infeed opening (H x W) | 210 x 265 mm |
| Chipping principle | Disc chipper |
| Infeed angle | Parallel to driving direction |
| Feed rollers | 2 horizontal |
| Rotor disc diameter | 760 mm |
| Rotor disc weight | 168kg |
| Number of blades | 3 |
| Counter steel | 1 horizontal and 2 vertical |
| Chip length | 4 – 10 mm |
| Effect need min. – max. | 40 – 115 hp (30 – 85 kW) |
| PTO rotations per minute | 1000 RPM (540 rpm with a speedup gear) |
| Capacity | Up to 40 m³/hour |
| Weight | 700kg |
| Dimensions (H x W x L) | 2440 x 1424 x 2480 mm |

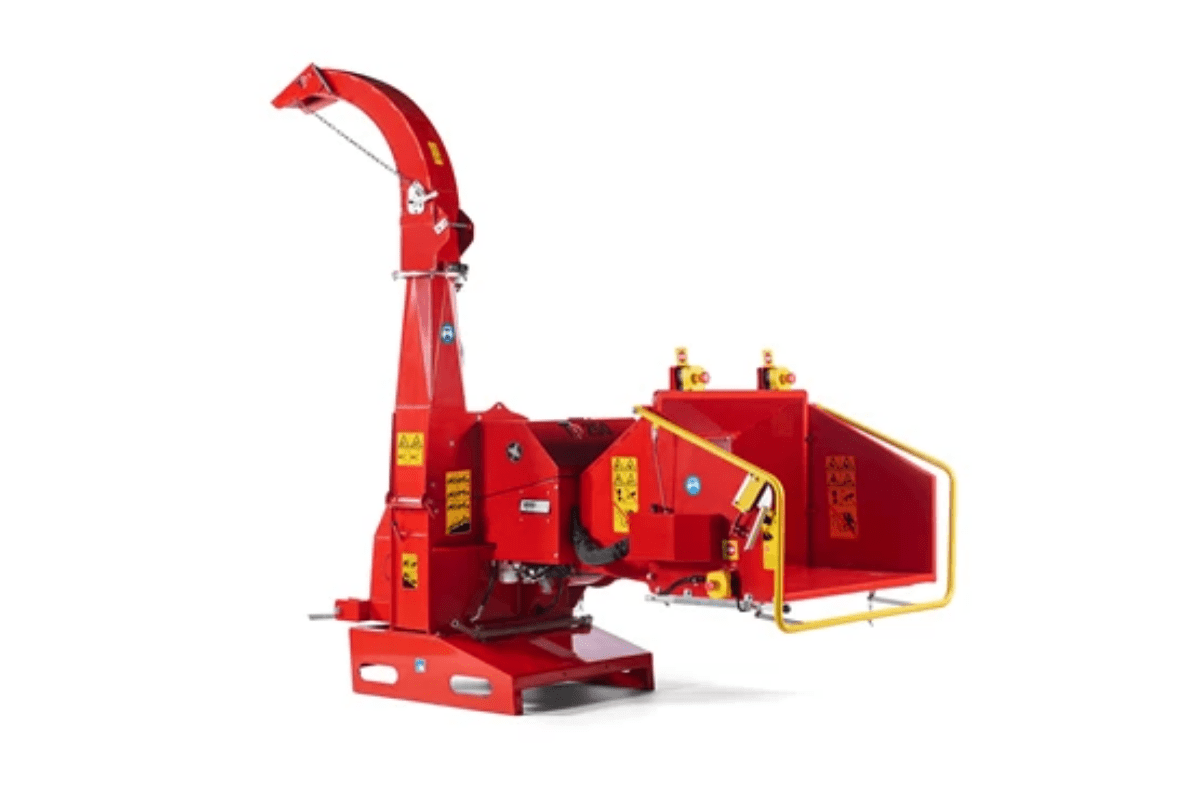

| Max. wood diameter | 250 mm |
| Infeed opening | 260 x 350 mm |
| Chipping principle | Disc chipper |
| Infeed angle | Parallel to driving direction |
| Feed rollers | 2 horizontal |
| Rotor disc diameter | 960 mm |
| Rotor disc weight | 266kg |
| Number of blades | 3 |
| Counter steel | 1 horizontal and 2 vertical |
| Chip length | 4 – 13 mm |
| Effect need min. – max. | 60 – 140 hp (45 – 104 kW) |
| PTO rotations per minute | 1000 RPM |
| Capacity | Up to 50 m³/hour |
| Weight | 1065kg |
| Dimensions | 2942 x 1536 x 2581 mm |

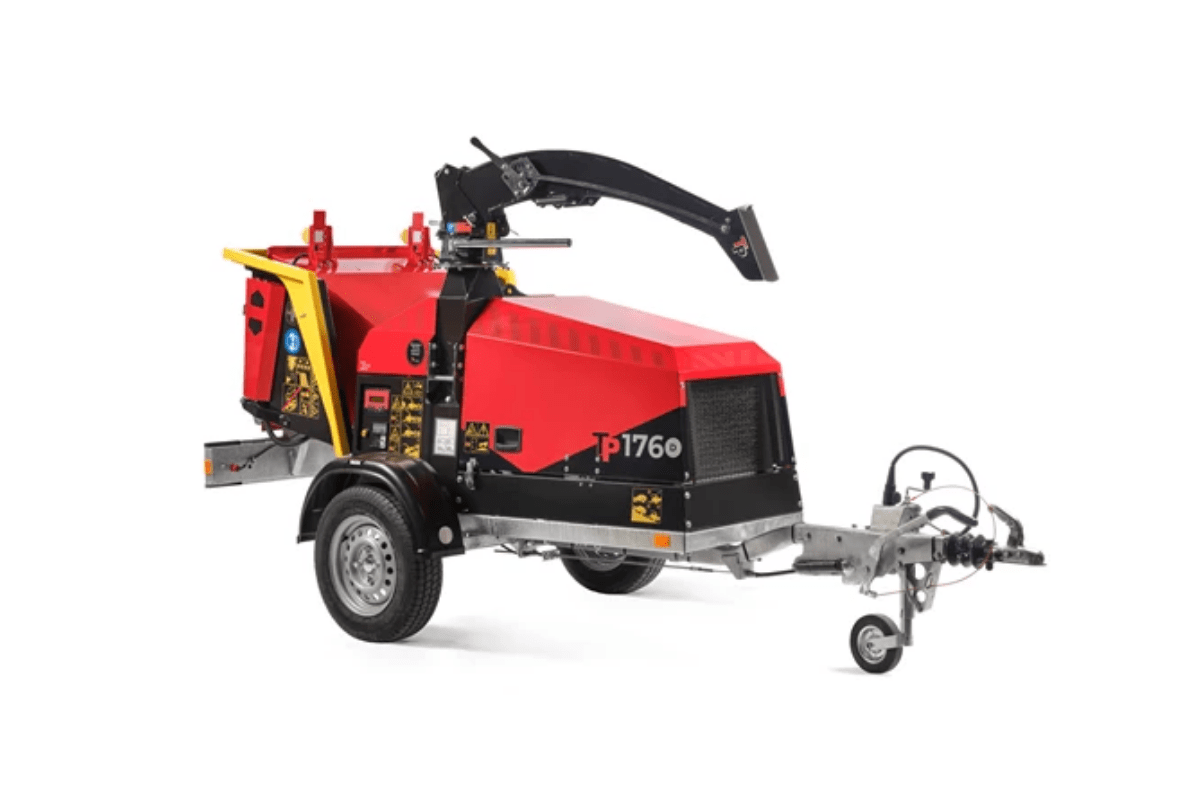

| Max. wood diameter | 176mm |
| Infeed opening (H x W) | 176 x 191 mm |
| Chipping principle | Disc Chipper |
| Feed rollers | 2 horizontal |
| Rotor disc diameter | 599 mm |
| Rotor disc weight | 69 kg |
| Number of blades | 2 |
| Chip length | Up to |
| Engine | Kubota 1305 |
| Engine power | 25 hp (diesel) |
| Weight | 749 kg |

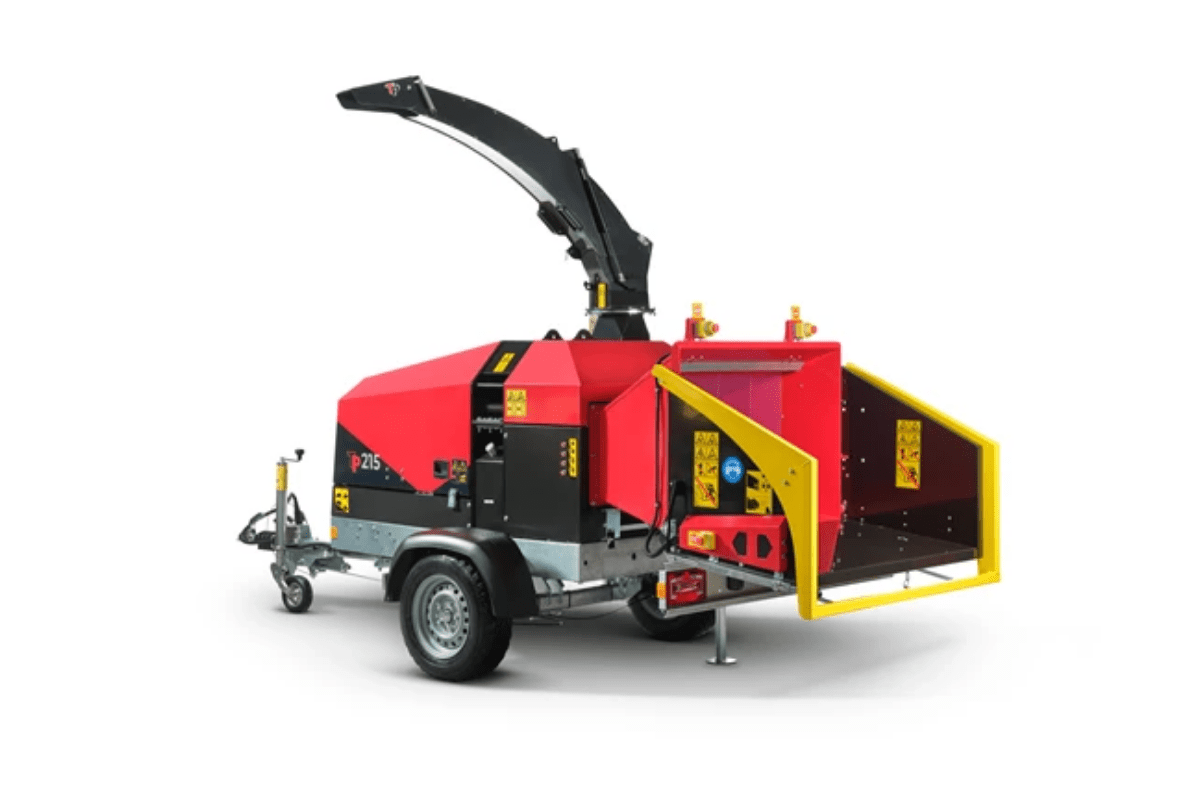

| Max. wood diameter | 216 mm |
| Infeed opening (H x W) | 216 x 265 mm |
| Chipping principle | Disc Chipper |
| Feed rollers | 2 horizontal |
| Rotor disc diameter | 760 mm |
| Rotor disc weight | 140 kg |
| Number of blades | 4 TP OPTICUT™ blades |
| Chip length | Up to 14 mm |
| Engine | Kohler/Lombardini KDI 2504 M |
| Engine power | 49 hp (diesel) |
| Weight | 1355 kg (single axle version) |

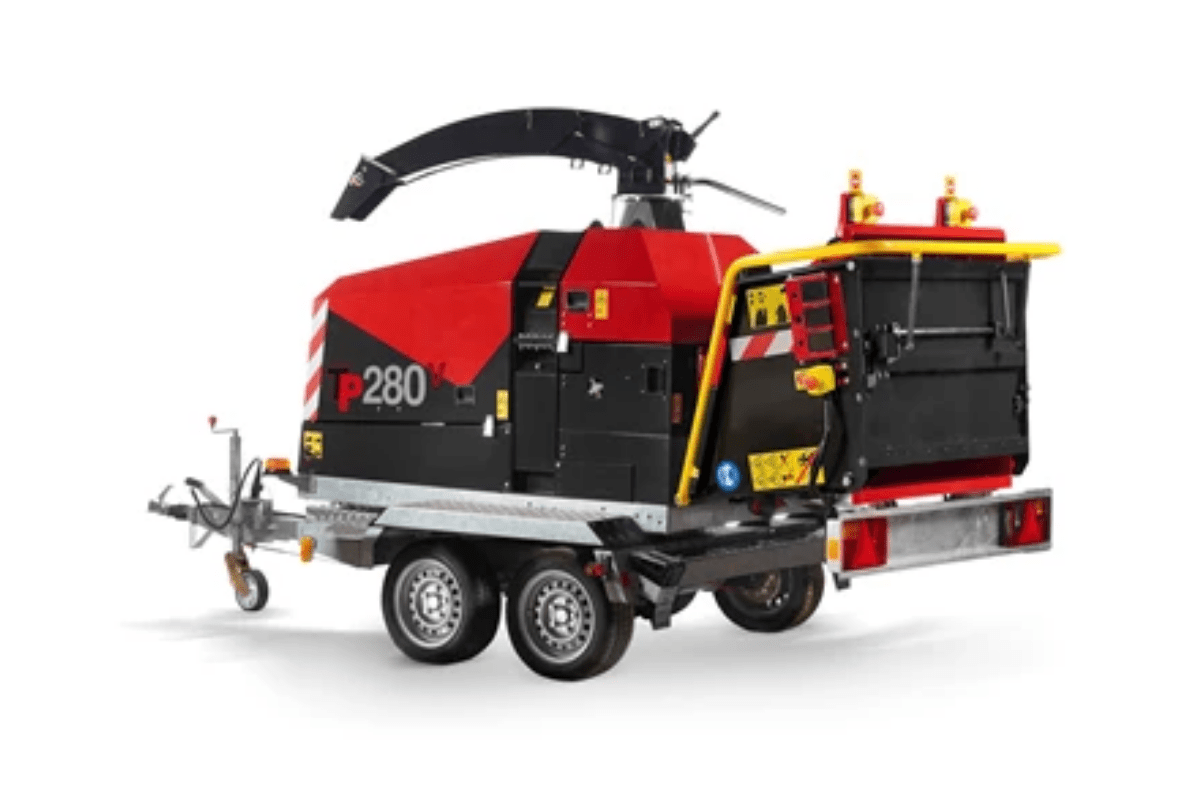

| Max. wood diameter | 280 mm |
| Infeed opening (H x W) | 280 x 280 mm |
| Chipping principle | Disc Chipper |
| Feed rollers | 2 Vertical |
| Rotor disc diameter | 860 mm |
| Rotor disc weight | 193 kg |
| Number of blades | 4 |
| Chip length | Up to 16 mm |
| Engine | Hatz 4H50TIC |
| Engine power | 74 hp (diesel) |
| Weight | 1900 kg |

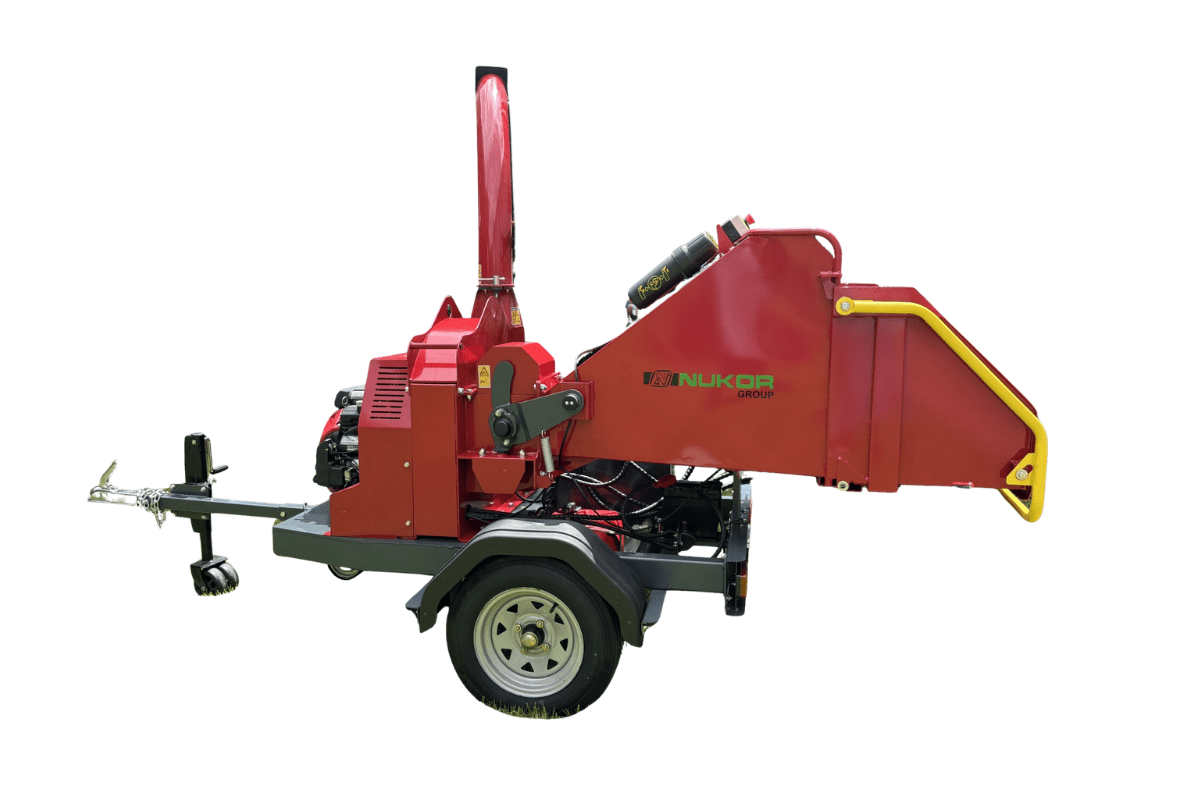

| Roller opening | 150 x 250mm |
| Number of rollers | 2 |
| Roller position | Horizontal |
| Chipper type | Disc |
| Chipping angle | 90° |
| Number of knives | 2 |
| Number of cuts per turn | 2 |
| Rotor speed | 1656r/min |
| Rotor weight | 73kg |
| Transmission | Belt |
| Anvil | Yes |
| Discharge Chute | 360° adjustable |
| Stress control | Manual |
| Engine | Honda GX690 |
| Fuel | Petrol |
| Engine power | 23hP/18kW |
| Fuel consumption | 6.7L/hour |
| Length (transport/operation) | 3470mm |
| Width | 1390mm |
| Height | 2280mm |
| Weight | 680kg |

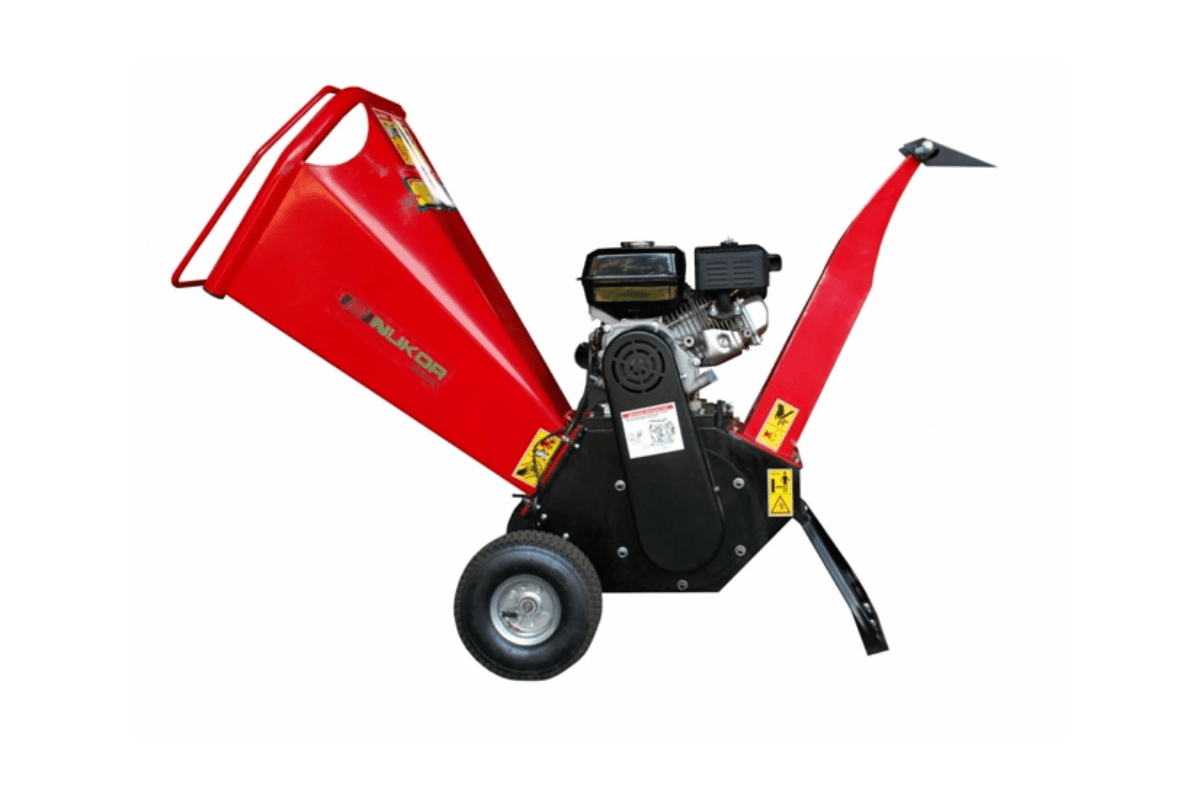

| Power | 6.5hp petrol 4-stroke |
| Max wood diameter | 80 mm |
| Drive | Gravity fed |
| Knife System | Drum chipper – Twin reversible knives |

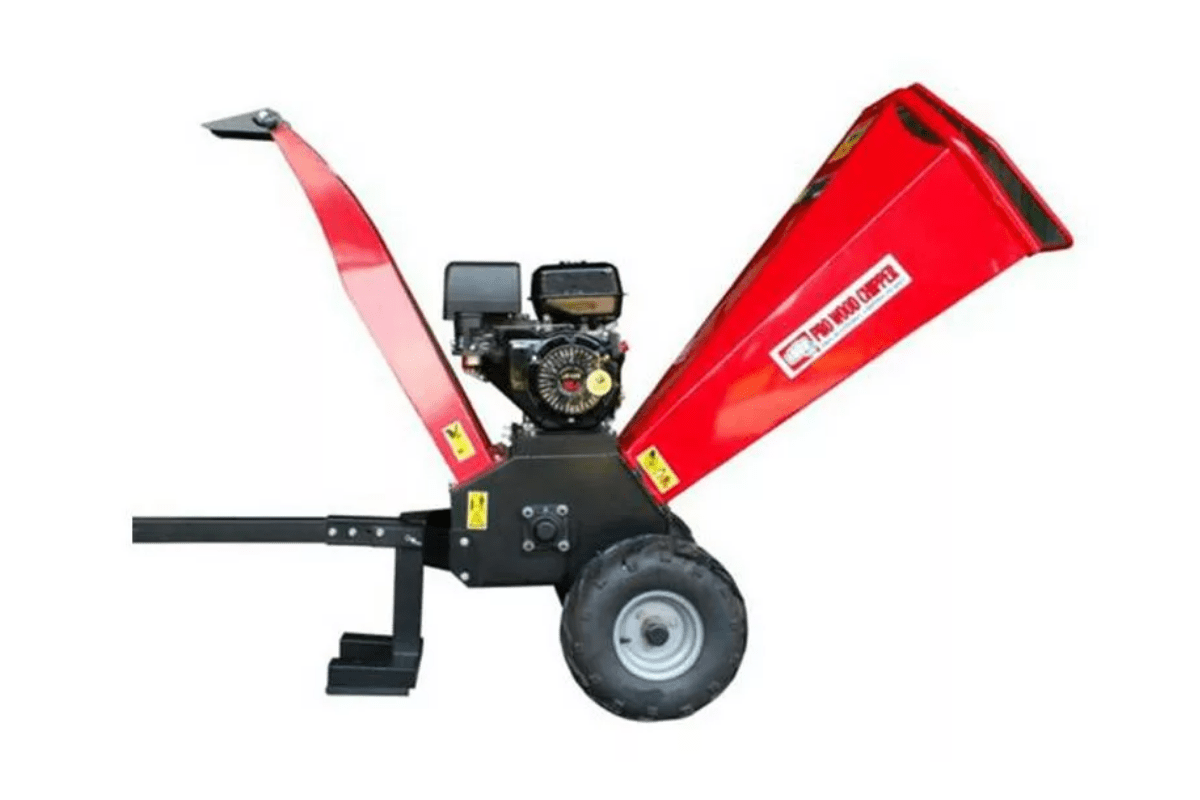

| Power | 15hp petrol 4-stroke |
| Max wood diameter | 100 mm |
| Drive | Gravity fed |
| Knife System | Drum Chipper – Twin reversible knives |
