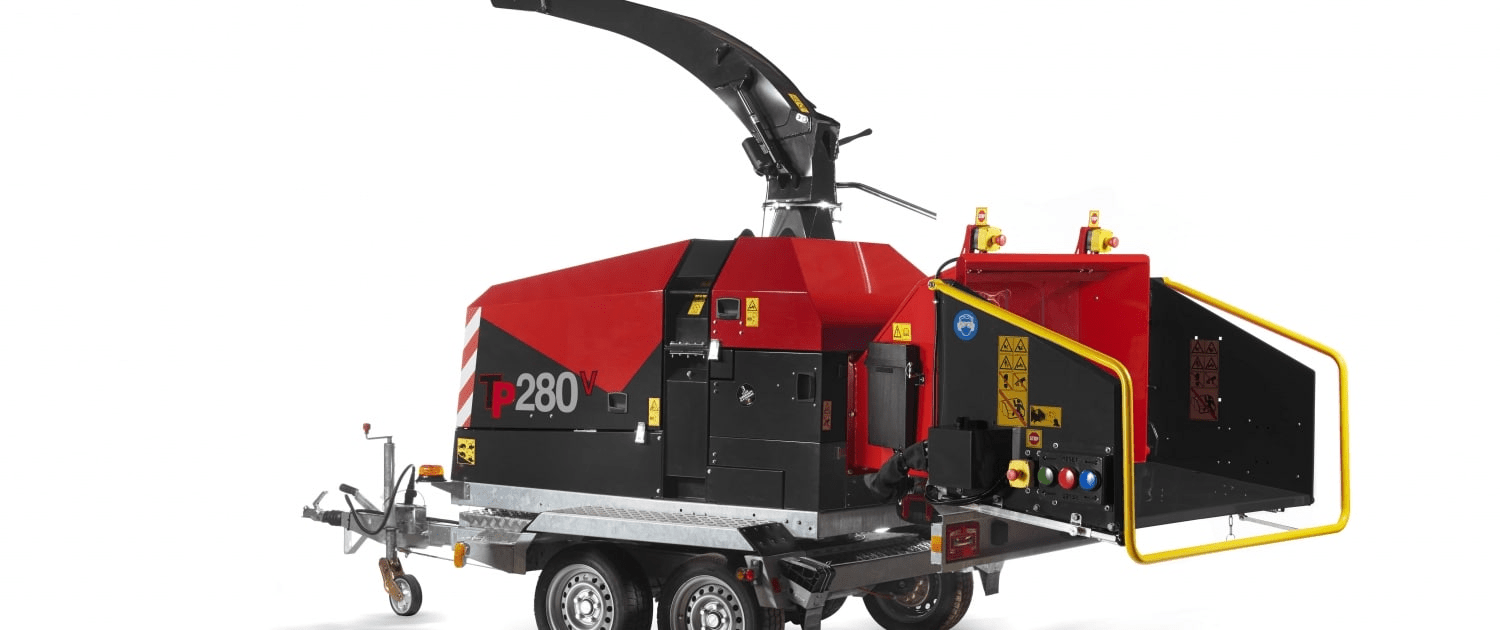

The all-new TP280 Mobile will be available in August 2020 and we can’t wait.
Features:
- Vertical feed rollers
- TP Starter and Pilot+
- Easy daily maintenance
- Hot-dip galvanised trailer components
and chassis - TP VARIO SPOUT can be moved steplessly
up and down via TP PILOT + - Diesel engine HATZ 4 H 50 TICD
- Integrated oil cooler
- TP TWIN DISC which reduces the weight of about 40%
Specifications:
| Max. wood diameter | 280 mm |
| Roller opening | 280 x 280 mm |
| Chipper type | Disc chipper with TP TWIN DISC™
and TP OPTICUT™ |
| In-feed angle | Parallel to direction of travel
Turntable 270° version available: TP 280 T MOBILE |
| Feed rollers | 2 vertical |
| Disc diameter | 835 mm |
| Disc weight | 193 kg |
| Disc speed | 1370 U/min |
| Number of knives | 4 |
| Counter steel | 1 horizontal 1 vertical |
| Chip size | 6 – 16 mm |
| Engine (Diesel) | Hatz 4H50TIC |
| Engine Power | 74 hp / 55 kW |
| Tank size | 75 l tank made of plastic |
| Fuel consumption | 6 l/hour (Diesel) |
| Capacity | up to 25 m3/h |
| Weight | 1860 kg – 2318 kg |
