Specially developed for companies that operate on a strict budget but do not want to forego quality.
The models of the WEINIG Unimat 200 series get the job done at a great price. Also, companies that produce on automated lines could profit from this model for short production runs.
The 300 model offers a compact but strong design with a great deal of flexibility. The numerous enhancement packages give you a valuable edge in production.
The 500 model offers a compact but strong design with a great deal of flexibility. The numerous enhancement packages give you a valuable edge in production. The 500 series will even give you 33% more production with the same high quality as the 300 series.
Powerful machines that can take it all. The Unimat 600 series is designed for tough daily work without any compromises.
A heavy, cast iron base together with numerous feed rollers, driven table rollers and heavy-duty pressure elements leave nothing to be desired.

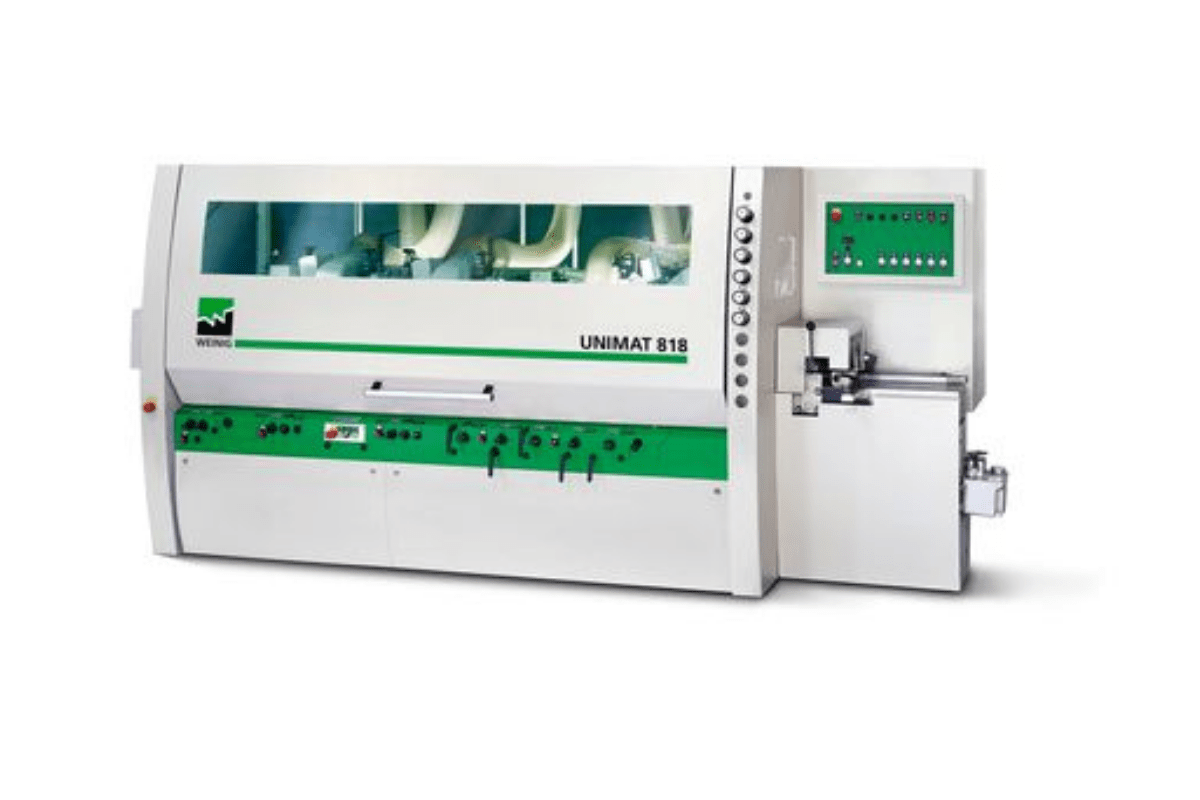

The power package for working with widths up to 310 mm (12 ¼”). These machines offer a perfectly tailored concept. Whether you are making profiles or wider products, you can take on any job with any model of the Unimat 800 series.
Feed speed | 6–15 m/min |
Revolution speed | 6.000 rpm |
Spindle arrangements | B-R-L-T |
Working width | 13–230 mm |
Working height | 8–120 mm |
Spindle diameter | 40 mm |
Operating Voltage | 400 V, 50 Hz |
Dimensions (L x W x H) | 3,728 x 1,270 x 1,700 mm |
Feed speed | 5–30 m/min |
Revolution speed | 7.000 rpm |
Spindle arrangements | B-R-L-T-B |
Working width | 20–230 mm |
Working height | 10–160 mm |
Spindle diameter | 40 mm |
Operating Voltage | 400 V, 50 Hz |
Dimensions (L x W x H) | 3,820 x 1,954 x 1,900 mm |
Working height min./max. | 10/160 mm |
Working width min./max. | 20/230 mm |
Working width 30 – 310 mm, speed max. 6,000 rpm with HydroLock outboard bearing | Option |
Maximum work dimensions | 310 x 200 mm |
Comfort Set operating concept | Standard |
Spindle speed 6,000 rpm | Standard |
Spindle speed 8,000 rpm (not with HydroLock outboard bearing) | Option |
Frequency-controlled speed 4,000 – 8,000 rpm | Option |
Start and stop of all spindle drives via frequency converter | Option |
Memory Plus control | Standard |
PowerCom Plus control | Option |
Max. tool diameter horizontal spindles (except first lower spindle) | 250 mm |
Max. tool diameter, vertical spindles | 250 mm |
HydroLock outboard bearing | Option |
Straight jointer / profile jointer, fully automatic | Option |
Frequency controlled feed speed 6 – 60 m/min | Standard |
Frequency controlled feed speed, 8 – 80 / 10 – 100 m/min | Option |
Marathon Coating for machine table and stop | Standard |
Max. motor power on vertical spindle (standard – option) | 7.5 – 22 kW |
Max. motor power on horizontal spindle (standard – option) | 7.5 – 37 kW |
Improved sound enclosure | Option |
