Description

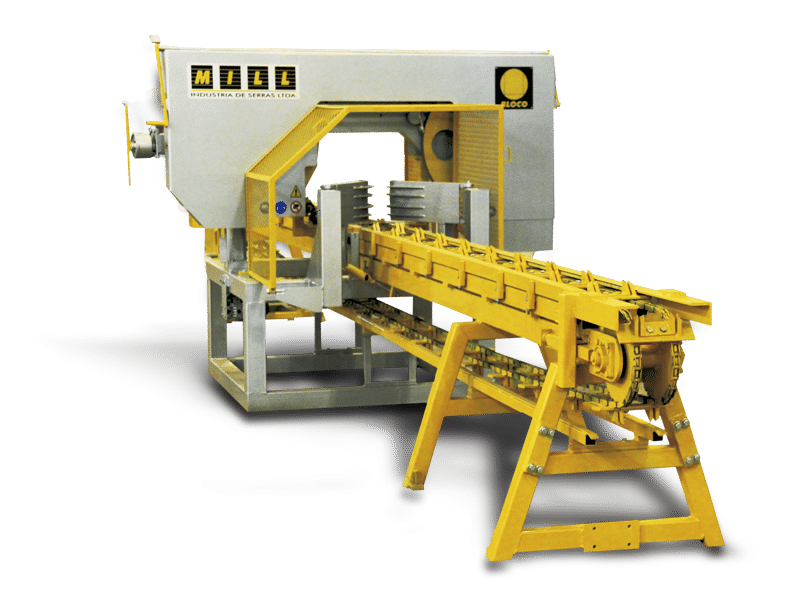

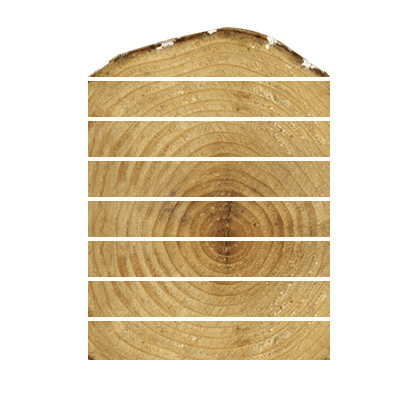

Designed to receive blocks and semi-blocks, sawing them into boards, with 1 up to 12 heads per machine
- Ideal to cut pine, eucalyptus, and teak.
- High-precision cut.
- Steel conveyor.
- High-production continuous feed system.
- Highly efficient use of wood, with the thinnest kerf on the market.
- Motorization and automatic electric panel included.
Technical Specifications:
M/PRO | L/PRO | G/FORCE | |
Minimum Cut Thickness | 2 mm | 5 mm | 5 mm |
Maximum Block Height | 330 mm | 330 mm | 350 mm |
Wood Width | 200 to 210 mm | 100 to 350 mm | 100 to 450 mm |
Wood Length | 400 to 3.000 mm | 500 to 3.000 mm | 600 to 3.000 mm |
Softwood Feed Speed | 20 to 30 m/min (inverter) | 10 to 20 m/min (inverter) | 10 to 30 m/min (inverter) |
Hardwood Feed Speed | 5 to 10 m/min (inverter) | 3 to 8 m/min (inverter) | 3 to 9 m/min (inverter) |
Estimated Production | Dependent on the number of heads | Dependent on the number of heads | Dependent on the number of heads |
Length | 5.300 mm + 1.000 mm for each additional head | 5.300 mm + 1.000 mm for each additional head | 6.100 mm + 1.500 mm for each additional head |
Height | 1.600 mm | 1.600 mm | 2.000 mm |
Width | 2.100 mm | 2.300 mm | 2.750 mm |
Weight | Varies | Varies | Varies |
Conveyor Width | 150 mm | 250 mm | 350 mm |
Return Conveyor Width | 210 mm | 350 mm | 450 mm |
Saw Motor | 20 HP | 25 HP | 30 HP |
Feed Motor | 3 CV / 5 CV / 7,5 HP | 3 CV / 5 CV / 7,5 HP | 3 CV / 5 CV / 7,5 HP |
Thickness Adjustment Motor (optional) | 1,5 HP | 1,5 HP | 1,5 HP |
Switch Gear | Automatic Electronic Panel | Automatic Electronic Panel | Automatic Electronic Panel |
Electrical Cables | Not Included | Not Included | Not Included |
Blade Width | 32 mm (1.1/4″) | 32 mm (1.1/4″) | 63,5 mm (2.1/2″) |
Blade Length | 4.220 mm | 4.800 mm | 5.700 mm |
Blade Thickness | 0,9 – 1,1 mm | 0,9 – 1,1 mm | 1,1 mm |
Saw Kerf | 1,7 mm | 1,7 mm | 1,9 mm |
Bandwheel Diameter | 700 mm | 700 mm | 900 mm |
