Description

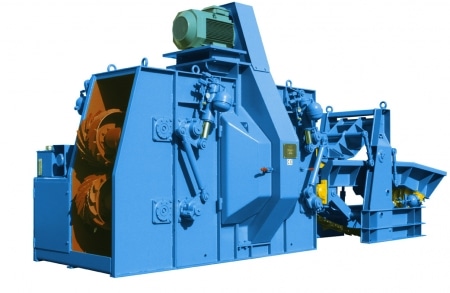

Debarker model VK26SMX
Valon Kone’s debarker model VK26SMX is a well known rotor debarker for debarking medium-sized logs. Nearly 100 pcs of corresponding machines have been delivered throughout the world since the end of the 1980s. The long-lasting popularity of this machine model lies behind its reliability and ease of use, which guarantees the customer constantly high quality debarking results with minimum maintenance costs.
Two different versions of the VK26SMX debarker model are available: VK26SMXand VK26SMXSL. If the logs are sufficiently long, the VK26MX debarker model is built primarily with six feedrolls. A SL (short log) version with eight feedrolls can also be built for debarking short and/or poor quality logs.
In the VK26SMX model, the hydraulic system of the feedrolls is a closed hydraulic circuit, which works with internal oil flow and the pressure changes in the accumulator. The pressure of each feedroll pair can be adjusted separately using the hand pump included in the machine delivery. This can only be done when the machine is stopped. The debarkers, whose feedrolls are equipped with a closed hydraulic circuit, have the required debarking pressure level set as constant.
Debarking rotor
The VK26SMX model includes a fixed debarking rotor in the machine frame with a 62 cm diameter. The hydraulically pressed debarking tools (6 pcs) are installed on the outfeed side of the rotor. The design of the tool arms makes them easier to open and minimises wood damage. The special design and the correct materials and production methods ensure the durability of the VK tool arms in any conditions. The debarking tool tips that perform the actual debarking are made of durable hard metal. The tool tips are fastened to the arm with bolts, which means that they can be easily replaced. Different tool tip versions are available for debarking various types of wood, for example.
Centring infeed conveyor
All VK26SMX machines are supplied with a centring VK infeed conveyor, model VK450. The infeed conveyor flap features a pre-opening function, which is required when feeding small or light logs in.
All VK26SMX debarkers feature FibreMax feed rolls with replaceable inserts.
Technical Data
VK 26SMX | VK 26SMXSL | |
Debarking diameter | 100 – 620 mm | 100 – 620 mm |
Min. log length | 2.2 m | 1.7 m |
Weight | 13 550 Kg | 15 650 Kg |
Motor | ||
* rotor | 55 kW | 55 kW |
* feedworks | 2×11 kW | 2×11 kW |
